The 2024 Aluminum Alloy Plate is an example of an Al-Cu-Mg alloy that exhibits excellent strength, good heat resistance, and easy workability. It is among the most popular alloys of the 2xxx series, where copper and magnesium are added as primary alloying elements. This alloy is very much preferred due to its strength surpassing that of 7075 alloy at elevated temperatures, especially above 125°C.
Specifications of 2024 Aluminum Plate
| Number | 2024 |
| Brand Name | Lanren |
| Temper | T3, T4, T6, T72, T81, T351, T861, T3511, T8611, HO |
| Length | 500MM – 11000MM or customized as required |
| Mill, Customer-specific finish | Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc. |
| Finish | Mill, Customer-specific finish |
| Lead Time | Within 7-15 days after receiving deposit |
| Payment Terms | TT, 100% LC, Western Union |
| MOQ | 1 Ton, please contact us for special needs. |
| Tolerance | ±1% |
| Packaging | Export standard packaging: wooden pallet + cardboard + steel bar fixed |
2024 Aluminum Plate Mechanical Properties
| Properties | 2024-T3 | 2024-T4, T351 | 2024-T851 |
| Yield Strength | 345 MPa | 50000 psi | 324 MPa | 47000 psi | >=400 MPa | 58000 psi |
| Tensile Strength | 483 MPa | 70000 psi | 469 MPa | 68000 psi | >=455 MPa | 66000 psi |
| Modulus of Elasticity | 73.1 GPa| 10600 ksi | 73.1 GPa| 10600 ksi | 72.4 GPa | 10500 ksi |
2024 Aluminum Plate Chemical Properties
| Element | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Other | AI |
| 2024（min） | – | – | 1.2% | 0.5% | 3.8% | – | – | – | 0.05% each | Remainder |
| 2024（max） | 0.5% | 0.5% | 1.8% | 0.6% | 4.9% | 0.25% | 0.15% | 0.1% | 0.15% in total | Remainder |

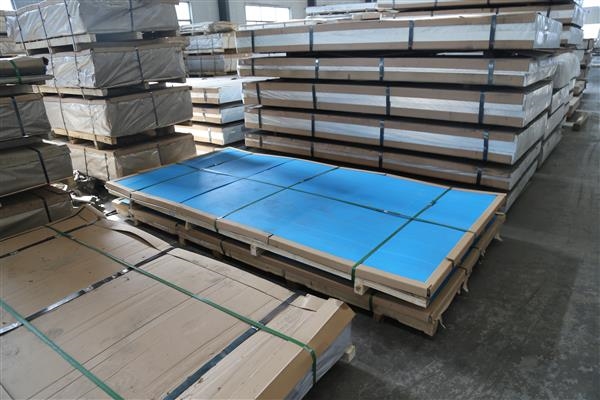

Our Warehouse Display
Advantages of 2024 Aluminum Plate
- Incomparable Strength and Heat Treatment: 2024 aluminium sheets are extensively used because of their elevated strength to weight ratio coupled with their enormous tensile and yield strength. This allows for use in extreme applications such as aerospace and heavy machinery. To ensure the alloy maintains performance during industrial applications, multiple heat treatments are done in-house, such as T3, T4, and T351 tempers.
- Precision Manufacturing and Quality Assurance: Advanced machines are utilised to monitor and control the thickness and cutting of aluminium sheets to preserve SQ and ST, and Quality Assurance is performed to high levels. Compliance with international standards like ASTM B209 and AMS QQ-A-250/4 are followed.
- Customization and Treatment of Surfaces: Standard and bespoke dimensions are offered to meet the requirements of the project. Multi-surface treatments enhance the durability of the alloy, providing optimised lifespan and corrosion protection.
- Technical Assistance and Guidance: Our clients receive counselling for the materials and techniques with the best fit provided by a well-rounded team of engineers and metallurgists, ensuring project success. Exceptional services are provided throughout the lifecycle of the product.
- Eco-Friendly, Timely, Global Logistics, and Shipping: Our company ensures that production and logistics are combined in sync with eco-friendly techniques, which helps in cost-effectiveness as well as playing a big role in maintaining a deadline all across the globe.
Applications
2024 aluminium alloy plate is classified as a high-strength duralumin and is noted for the wide range of industries that make use of it. High strength, good machinability, and a favourable strength-to-weight ratio are features that make 2024 alloy plate popular among different fields of industry. Following are the most significant areas of use for 2024 aluminium alloy plate:
- Transportation Industry: The alloy is equally on use in the fabrication of truck wheel hubs and associated structural elements, and is valued for high strength and heat resistance for use in parts as hot as 150°C.
- Aerospace Industry:The 2024 aluminium plate is in widespread use for the structural parts of skin and frames, ribs, spars, bulkheads and other parts of the aircraft, as well as rivets, some missile parts and propeller components. These components are exposed to substantial tension on the wings and fuselage which requires good fatigue resistance and strength for its high strength.
- Manufacturing Industry: 2024 aluminium plate is in use in a variety of durable yet lightweight products and components.
- Machinery Manufacturing: Because of its superb mechanical working capabilities, 2024 aluminium plate is utilised in the production of high-load parts and components like mechanical tools and equipment.
- Construction Industry: 2024 aluminium plate is not the most common material in construction, but it is occasionally used in certain structural components of buildings.

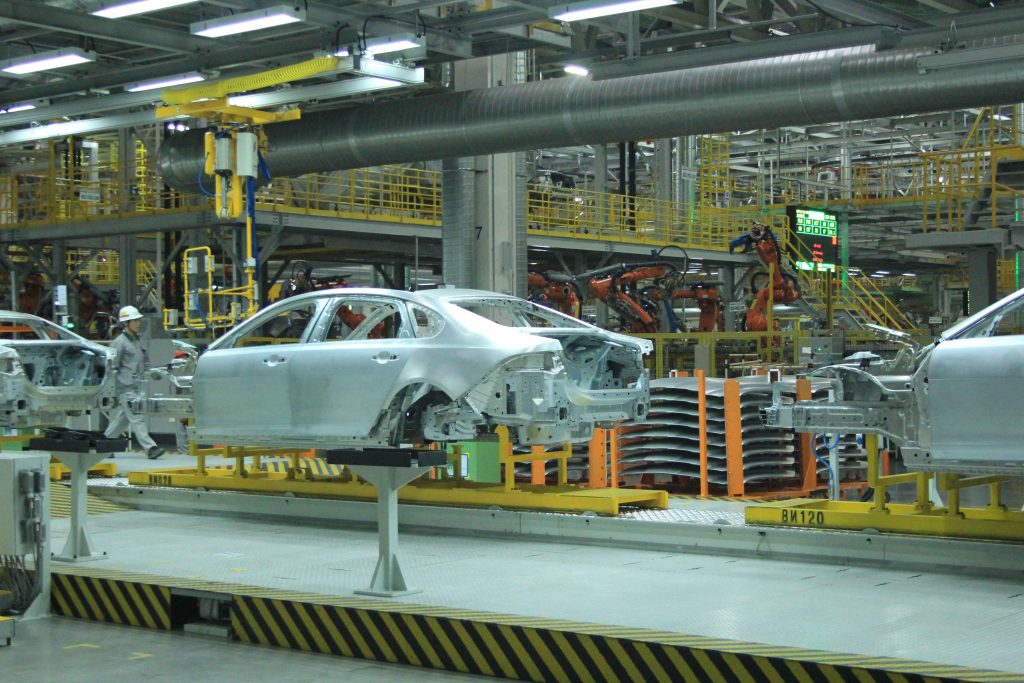

- Automotive Industry: 2024 aluminium plate’s light weight is beneficial in the automotive industry for the manufacturing of light weight components like hub wheels.
Why Choose Lanren As Your 2024 Aluminum Plate Supplier
- Specialized Alloy Expertise: For us at Lanren Aluminium, 2024 aluminium plate is a material we deeply understand, including its high strength, great machinability, and how it responds to different heat treatments. This level of expertise is especially important in aerospace and defence projects where reliability is critical.
- Quality Control: The quality control processes we have in place for 2024 alloy are out of the ordinary, to say the least. We have a process of control for each alloy which involves strict compliance to in-process control during each stage of 2024 alloy processing including its strength and endurance. Each sheet is scrutinised to ensure compliance with the most rigorous international benchmarks.
- Customized Solutions: We know every customer’s project is unique in its way. This is why we are able to adjust the 2024 aluminium plate to suit your requirements. Whether it is a certain thickness, unusual measurement, or surface treatment, we are willing to adjust.
- Stock Availability: We always have 2024 aluminium plate in different sizes and tempers in stock, which benefits everyone. This way, we reduce project timelines by cutting lead time.
- Supply Chain Efficiency: The accuracy and reliability of Lanren Aluminium’s supply chain processes is undeniable. We have set out each step to ensure you get your 2024 aluminium plate when needed. This way, your manufacturing processes are not disrupted by supply chain delays.
- Sustainability Commitment: We practise eco-responsibility. The upcoming production of 2024 aluminium plate will be more energy efficient and will utilise more recyclable materials. This will aid in building a greener future. With us, you don’t have to compromise on performance.
With Lanren Aluminium, you have a partner who truly understands 2024 aluminium plate. We will always be there to help you, and that includes walking you through to early consultation, and we will be there after the plate is delivered to help you. We don’t just sell you metal, we sell you peace of mind too.
