5083 Aluminum Plate

The 5083 Aluminum Plate is an alloy famous for its toughness and non-heat-treatable alloys. It is known for being post-weld excellent in strength and being able to withstand harsh conditions. It is still able to withstand wrought corrosion from seawater and industrial chemicals. This is mainly caused due to its composition which is rich in magnesium and manganese. However, the alloy is not meant for high temperatures. The 5083 plate is ideal for the marine and chemical industries, as well as the structural industry, which deals with extreme strength and toughness.

Specifications of 5083 Aluminum Plate

Number	5083
Brand Name	Lanren
Temper	H111, H114, H116, H321, H22, H24, H26, H32, H16, H12, HO, etc.
Thickness	0.15MM – 500MM or customer required
Width	30MM – 2600MM or customer required
Length	500 – 9000MM or customer required
Standard	ASTM B209, EN573, EN485
Surface	Bright, polished, hair line, brush, sand blast, checkered, embossed, etching, etc.
Finish	Mill, Customer Specific finish
Lead Time	Within 7-15 days after receiving deposit
Payment Terms	TT, 100% LC, Western Union
MOQ	1 Ton, please contact us for special needs.
Tolerance	±1%
Packaging	Export standard packaging: wooden pallet + cardboard + steel bar fixed
OEM service	Perforated, Cutting special size, Doing flatness, Surface treatment,etc

5083 Aluminium Plate Chemical Properties

Element	AI	Fe(%)	Si(%)	Mn(%)	Cu(%)	Mg(%)	Zn(%)	Ti(%)	Cr(%)	Others(%)
										Each	Total
5083	Remainder	0.40	0.40	0.40-1.0	0.10	4.0-4.9	0.25	0.15	0.05-0.25	0.05	0.15
5083	Remainder	0.25	0.25	0.70-1.0	0.20	4.0-5.2	0.40	0.15	0.25	0.05	0.15

5083 Aluminium Plate Mechanical Properties

Property	Value
Proof Stress	110 Min MPa
Tensile Strength	170-360MPa
Yield Strength	>= 65MPa
Modulus of Elasticity(E)	69.3-70.7Gpa

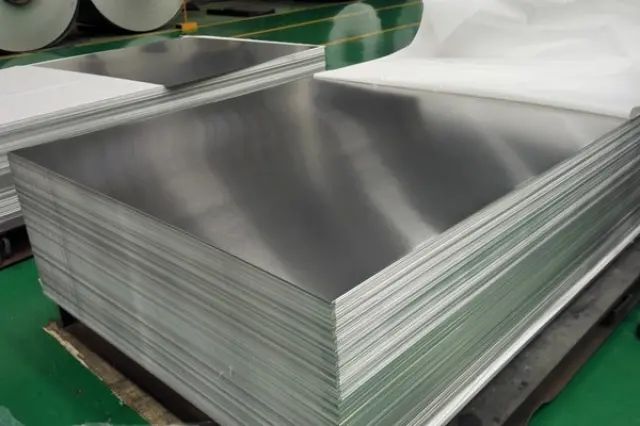

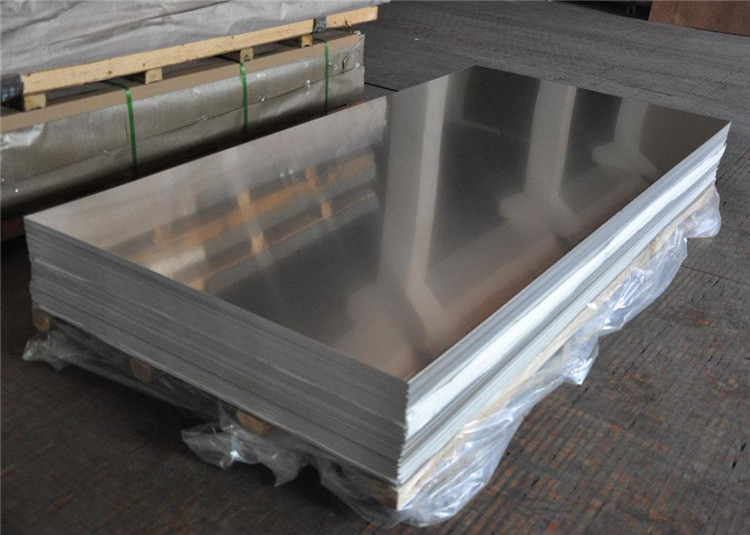

Warehouse Display

Advantages of Lanren 5083 Aluminum Plate

Established in 2008, Chongqing Lanren Aluminum Industry Co., Ltd. has become one of the most distinguished comprehensive aluminum processing companies in China. Our corporate headquarters is geographically well-positioned, with a state-of-the-art plant that is 50,000 sq. meters, employing over 300 individuals in the industry. With the company’s efficient production facilities, advanced processing equipment, and an extensive array of products, we are able to meet the high standards of the aerospace, transportation, construction, and packaging industries. Concerning our 5083 aluminum plate products, we have notable advantages in the following areas:

• Quality Control: Ship, automobile, and aircraft manufacturers, as well as other industries that utilize components for marine, automotive, and aerospace equipment value extruded 5083 aluminum plates for their moderate strength, superior corrosion resistance, and exceptional weldability. We have integrated industry standards with the principle of “quality first” to ensure client satisfaction and support our claims.
• Production Capabilities: The company’s large-scale production line enables us to meet volume demand for our products. The efficiency of exceeding substantial demand in a cost efficient manner supports industry standards for quality control.
• Technology: Our company’s 5083 aluminum plates are offered with rigorous cropping, tolerances, and superior polishing, all of which are made possible through our industry’s leading equipment and production techniques.
• Product Variety: We aim to satisfy diverse requirements and offer a vast array of products, which includes various other alloy series aluminum plates in addition to our 5083 aluminum plates.
• Customization Services: To address specific customer needs, we provide OEM services tailored to their distinct specifications.
• Competitive Pricing: To ensure maximum satisfaction, we provide high-quality products and services at a highly competitive market price.
• Excellent After-Sales Service: To ensure steadfast loyalty and a positive customer experience, we provide outstanding after-sales services to bolster the customer experience.

We invite you to visit our factory so we can start a long-term business interaction. Together, we can tap the potential of 5083 aluminum plates in your projects and achieve mutually beneficial outcomes.

Application Scenarios of 5083 Aluminum Plate

5083 Aluminium Plate has a high strength alloy, which is non-heat treatable. It is a popular choice for different industries because of its superior weldability and non-heat treatable properties. Below are the most important applications of the 5083 aluminum Plate.

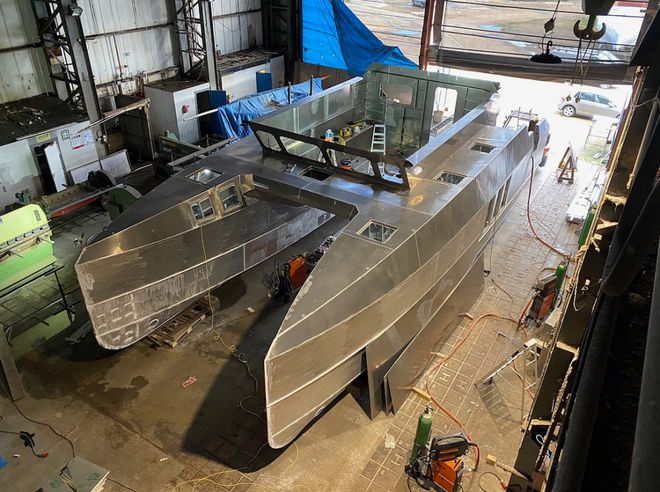

• Marine Industries:5083 Aluminum Plate is heavily stressed in shipbuilding and the construction of superstructures, decks, and hulls when it is employed in an the saltwater environment. It is excellent in its marine corrosion resistance. It is utilized in 5083 H321 temper which is known for its performance in the marine industries for components used into extreme sea conditions.

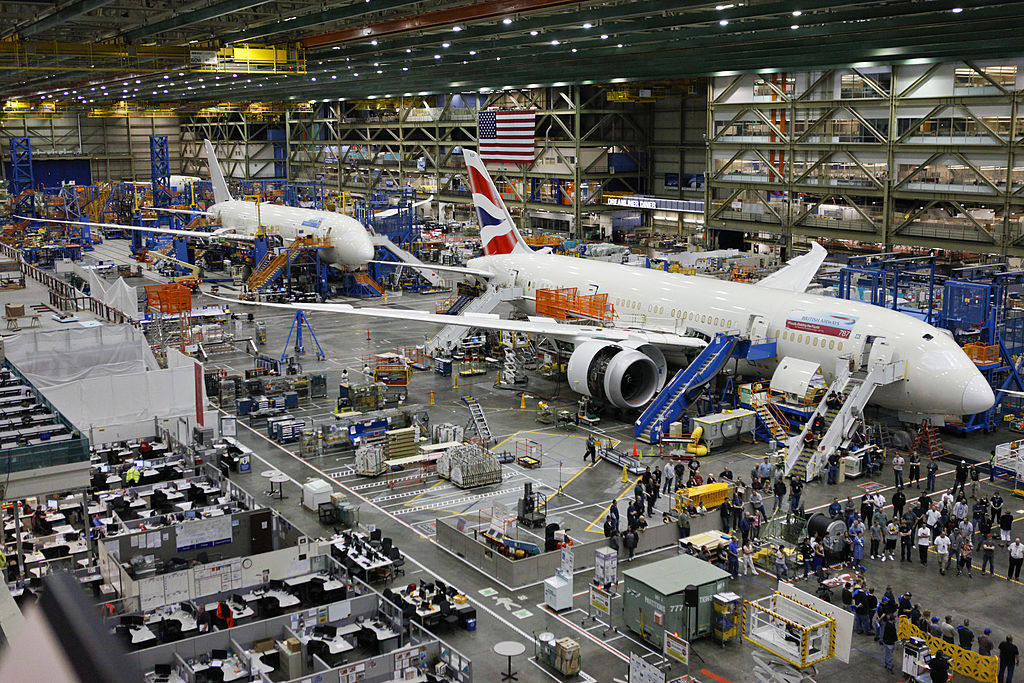

• Automotive and Aerospace Industries:Strength of 5083 Aluminum Plate allows it to be use in automobiles as well as in aircraft engines since it is commonly is used in structural components that must be light to improve fuel efficiency.
• Pressure Vessels and Tanks: Others industries which utilize Aluminum as a plating for pressure Vessels or Tanks is the ones which deal with its volatile nature due to its strength and usage.

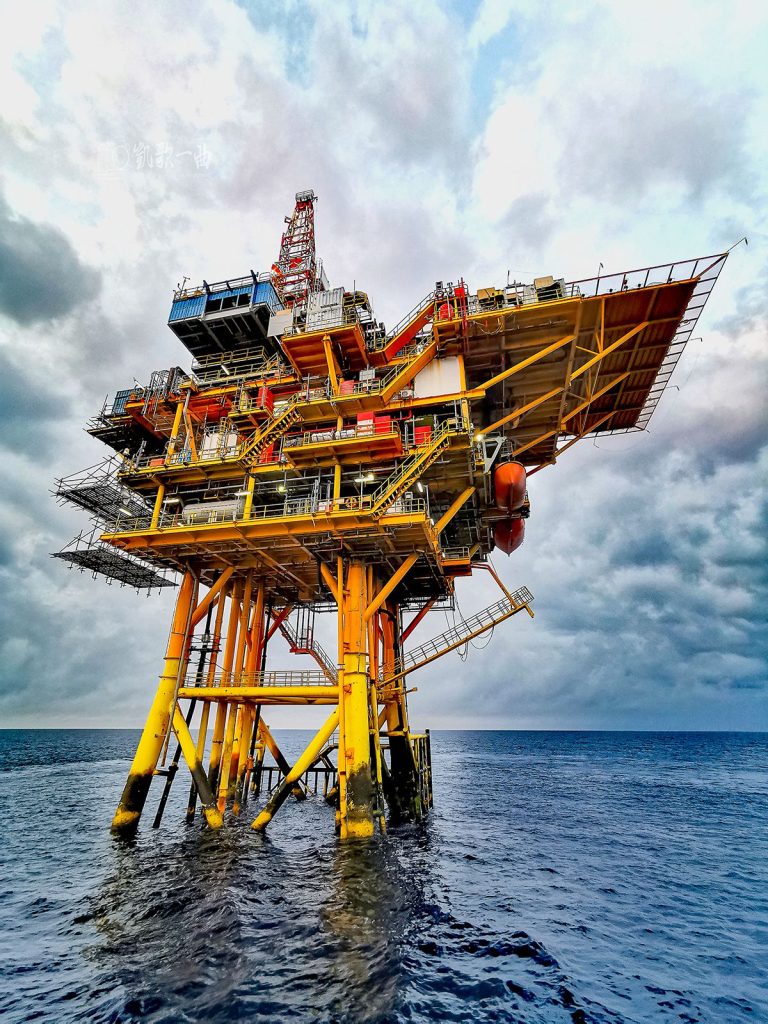

• Offshore Platforms: It is used in offshore platforms, as well as for the construction of oil rigs because it is utilized in exterior parts like walkways, structural components and the helideck’s surface.

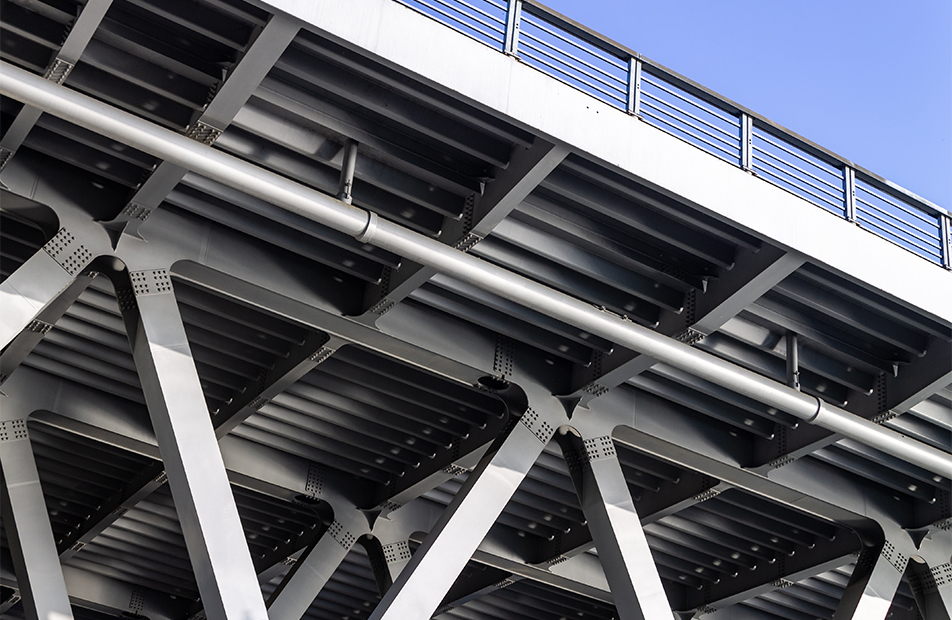

• Construction: It is utilized in the construction of structures in coastal areas and near water bodies, for example bridges, sidewalks and facade cladding where resistance to corrosion is crucial.
• Industrial Equipment: The material can be employed in chemical processing plants and power generation facilities as well as other similar industries that work with corrosive fluids due to their capacity to withstand saltwater and industrial chemical environments.
• Transportation: This alloy can be used for the construction of high speed ferry vessels and other high speed craft, and on transport cars. This helps in the optimization of fuel usage and a rise in payload.

The 5083 aluminum plate is used in various industries and applications because of its high strength to weight ratio, its corrosion resistance, weldability and formability. In addition its thermal properties are average and it cannot be used in applications above 65°C.

Why Choose Lanren Aluminum As Your 5083 Aluminum Plate Supplier

• Specialized Alloy Know-how: Lanren Aluminum is your most reliable partner in applications such as boat construction or offshore platform building because we require 5083 alloy’s unique properties, including its marine-related corrosion resistance.
• Consistent Quality Supply: To ensure that your production process is seamless and relies on a continuous supply of 5083 aluminum plates and we will ensure an unstoppable supply of aluminum plate.
• Innovative Production Techniques:5083 aluminum plates possess specific characteristics that Lanren aluminum can improve by applying innovative manufacturing techniques that allow your products to outdo rival products designed specifically for specific purposes.
• Environmental Stewardship: Businesses that take care of sustainability are a green supplier in Lanren since environmental responsibility throughout manufacturing is an integral part of our manufacturing processes.
• Flexible Order Management: From small-scale production to massive runs, we provide the ability to manage your orders in a way that fits the different volumes of orders.
• Full Line of Products: Buy aluminum products other than 5083 aluminum plates and get a variety of materials from one trusted supplier.
• State-of-the-Art Testing Facilities:  Every plate of aluminium are examined for quality as well as performance and endurance tests at our state-of-the art testing facilities.
• Open and Fair Business Practices: We offer a an honest and solid commercial partnership with our clients. Additionally, we offer stable and reliable partnerships to all of our clients.

If you choose Lanren Aluminium as the supplier of 5083 aluminum plates you’re selecting a business who is committed to achieving quality in addition to innovation and customer satisfaction. Discover the Lanren distinction on future orders of aluminum plates.

FAQ

Q1: Are you a manufacturer or trader?

A1: Chongqing Lanren Aluminum Co., Ltd is a very professional aluminum alloy product production factory. Welcome to visit and inspect our factory.

Q2: Do you provide samples? Is it free or additional?

A2: Samples can be provided to customers free of charge, but you need to provide the sample specifications, delivery address, email address and other information, and the express freight will be borne by you.

Q3: How long is your delivery time?

A3: If we have the exact goods in stock, it usually takes 7 days. If not, it takes about 15-20 days to be ready for delivery.

Q4: Will you deliver on time?

A4: Yes, we promise to provide the best quality products and deliver on time. Integrity is the purpose of our company.

Q5: Do you accept third-party inspection?

A5: Yes, we absolutely accept.

Q6: What is your after-sales service?

A6: We provide after-sales service, and each customer will have an exclusive manager to follow up.
