The 7075 series is one of the most recognized aluminum alloys due to its high zinc content and superior mechanical properties like high ductility, toughness, and strength, along with notable resistance to fatigue.
The 7075 alloy, while somewhat susceptible to microsegregation embrittlement, exhibits insufficient resistance to corrosion when compared to the 2000 series alloys. Its prowess is most notable when stress is applied, contributing to its dominance in the aerospace and construction industries where safety and structural integrity are of utmost importance.

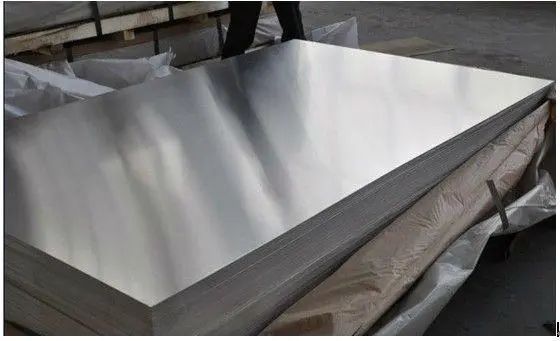

Specifications of 7075 Aluminum Plate
| Number | 7075 |
| Brand Name | Lanren |
| Temper | HO, T651, T7451, T6, etc |
| Thickness | 15.0MM – 600MM or customer required |
| Width | 500MM – 2600MM or customer required |
| Length | 600MM -M8000MM or customer required |
| Standard | ASTM B209, ISO 209, EN 573-3, DIN 1725-1, GB/T 3190 |
| Surface | Coated, Embossed, Brushed, polished, Anodized, etc |
| Finish | Mill, Customer specific finish |
| Lead Time | Within 7-15 days after receiving deposit |
| Payment Terms | TT, 100% LC, Western Union |
| MOQ | 1 Ton, please contact us for special needs. |
| Tolerance | ±1% |
| Packaging | Export standard packaging: wooden pallet + cardboard + steel bar fixed |
7075 Aluminum Plate Chemical Properties
| Element | Fe | Si | Mn | Cu | Mg | Zn | Ti | Cr | Others-Each | Others-Total | Al |
| 7075(min) | – | – | – | 1.20% | 2.10% | 5.10% | – | 0.18% | 0.05% | 0.15% | Remainder |
| 7075(max) | 0.50% | 0.40% | 0.3% | 2.00 % | 2.90% | 6.10% | 0.20% | 0.28% | 0.05% | 0.15% | Remainder |
7075 Aluminum Plate Mechanical Properties
| Aluminum Alloy and Temper | Ultimate tensile strength, MPa (ksi) | Yield strength, MPa (ksi) | Elongation in 50mm (2in.),%, 2 | Brinell Hardness, HB (500 kgf load 10mm ball) | |
| 1.6mm (1/ 16 in.) thick specimen | 12.5mm (1/2 in.) thick specimen | ||||
| 7075-0 | 230 (33) | 105 (15) | 17 | 14 | 60 |
| AA 7075-T6, T651 | 570 (83) | 505 (73) 11 | 11 | 150 | |
| Alclad 7075-0 | 220 (32) | 95 (14) | 17 | ||
| Alclad 7075-T6, T651 | 525 (76) | 460 (67) | 11 | ||
Advantages of Lanren 7075 Aluminum Plate
Welcome to our range of 7075 Aluminum Plate, where we pride ourselves on delivering a product of exceptional quality and performance. As a leading manufacturer, our factory offers the following distinctive advantages and selling points for our 7075 Aluminum Plate:
- We produce 7075 Aluminum Plate that is easy to machine, allowing for the creation of complex parts and components with high precision.
- Our 7075 plate is compatible with welding processes, offering versatility in fabrication and construction projects.
- The 7075 Aluminum Plate can be anodized, providing not only enhanced corrosion resistance but also a wide spectrum of colors for design flexibility.
- We specialize in customizing our 7075 Aluminum Plate to meet the exacting requirements of our clients, with a variety of dimensions and specifications available.
- Our team of experts is on hand to provide technical guidance and support, ensuring that your project specifications are met with precision.
- With advanced manufacturing capabilities, we guarantee efficient production and timely delivery of 7075 Aluminum Plate, even for large orders.
- Sustainability is at the heart of our production process, ensuring that our 7075 Aluminum Plate is manufactured with minimal environmental impact.
Discover the strength and versatility of our 7075 Aluminum Plate for your next project. Our commitment to quality, combined with our dedication to customer service, makes us your trusted partner for high-performance aluminum solutions.
Application Scenarios of 7075 Aluminum Plate

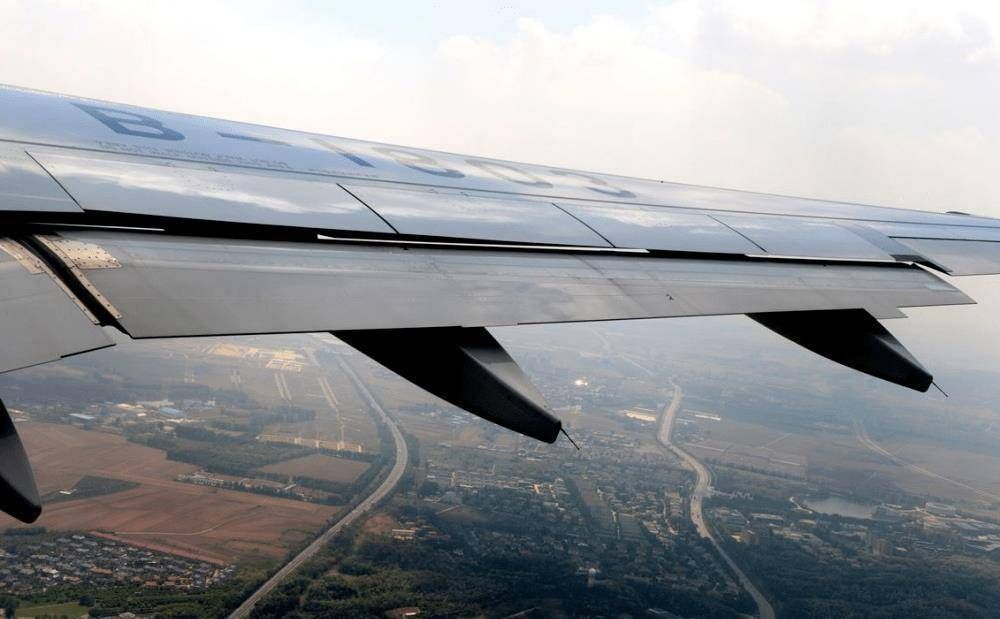

- Aerospace Industry: The 7075 Aluminum Plate is widely implemented in the aerospace industry for the fabrication of parts for aircraft, including wings and fuselage frames, which need to be ultra-strong and rigid. This alloy is well known for its strong machinability and for possessing a good strength-to-weight ratio.
- Defense Applications: The 7075 Aluminum Plate is equally known for its strength and resilience, which makes it useful for construction purposes in the military, for example, in military vehicles, artillery components, and in armor plating.

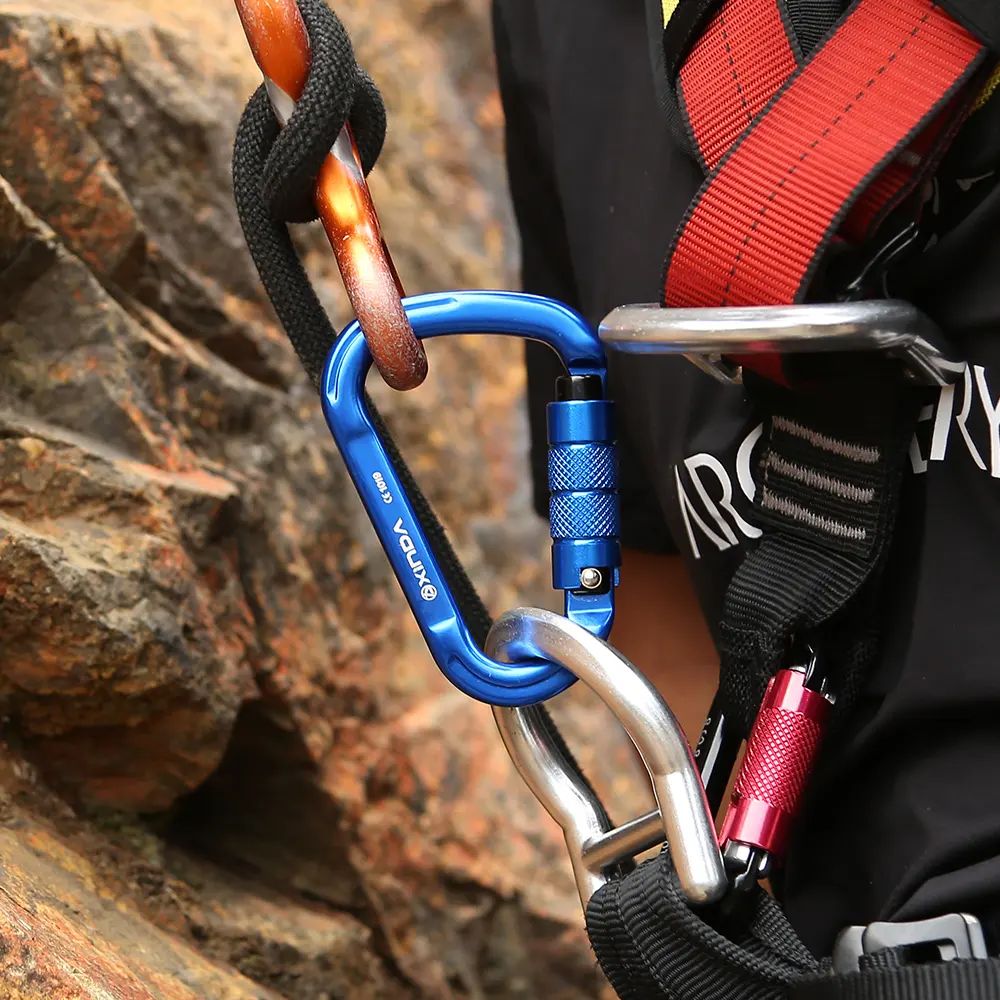

- Sports Equipment: 7075 alloy is used for sports equipment including bicycles, and for rock climbing due to its light weight and strong durability.
- Marine: The durability and longevity, coupled with the 7075 aluminum plate’s ability to resist corrosion, make it one of the most precious metals to be used in the construction of marine vessels. The aluminum plates are used on the parts of the boats, including the hull, masts, and others.
- Manufacturing of Metal Matrix Composites (MMCs): The incorporation of aluminum into 7075 aluminum-based MMCS further improves its mechanical properties. The addition of nanoparticles, such as ceramic nanoparticles, can enhance the 7075 aluminum-based composites for aerospace applications by improving the overall weight and increasing the fracture strength.

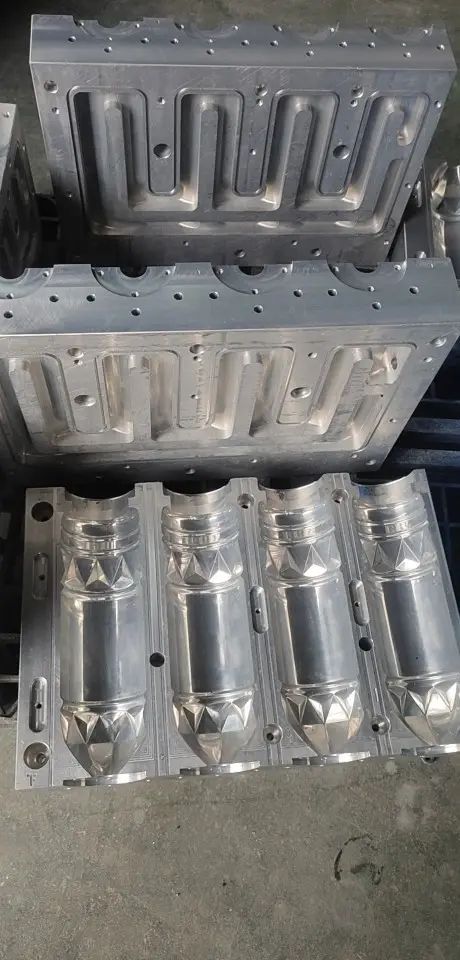

- Tooling and Molds: The 7075 Aluminum Plate is suitable for the making of molds and tooling as it can endure the pressures and stresses put on it during the manufacturing process.
- Aircraft Grade Material: 7075 Aluminum Plate is famous for being utilized as aluminum in the construction of commercial aircraft parts and aerospace equipment, and is often referred to as aircraft-grade aluminum.
Why Choose Lanren Aluminum As Your 7075 Aluminum Plate Supplier
- Specialized Production Line: Our tracks for the 7075 aluminum plate are equipped with the necessary technology to manufacture the alloy to the required quality standards for the specialized high-strength 7075 aluminum alloy.
- In-House Quality Assurance: We have designed a specialized program for the inspection of 7075 aluminum plate, which involves rigorous tests, inspection, and certifying all of the issued plates, thus assuring quality standards are met.
- Technical Proficiency: Like many other alloys, 7075 aluminum plate has a distinctive nature that requires accuracy and know-how to gain maximum efficiency. We have the necessary tools and expertise to work on the plate.
- Customization and Tailored Solutions: We accommodate all of the specifications that are presented to us, allowing the customer to dictate the dimensions, tolerances, and surface engagement for the 7075 aluminum plate.
- OEM and ODM Capabilities: Our customers and prospective clientele are not restricted to operating under their brands, allowing the OEM and ODM products to be issued under private label.
- International Exhibition Presence: We have not only attended but have been active participants in the International Builders’ Show and China International Aluminum Industry Exhibition to further enhance our outreach and remain connected.
Opting for Lanren Aluminum as your supplier for 7075 aluminum plates means choosing a supplier who has an incredible depth of understanding of the material’s complexities, an unwavering commitment to quality, and a global perspective that guarantees the most reliable Aluminum 7075 services and products. For your requirements with high-strength aluminum, allow us to show the Lanren difference.
FAQ
Q1: Are you a manufacturer or trader?
A1: Chongqing Lanren Aluminum Co., Ltd is a very professional aluminum alloy product production factory. Welcome to visit and inspect our factory.
Q2: Do you provide samples? Is it free or additional?
A2: Samples can be provided to customers free of charge, but you need to provide the sample specifications, delivery address, email address, and other information, and the express freight will be borne by you.
Q3: How long is your delivery time?
A3: If we have the exact goods in stock, it usually takes 7 days. If not, it takes about 15-20 days to be ready for delivery.
Q4: Will you deliver on time?
A4: Yes, we promise to provide the best quality products and deliver on time. Integrity is the purpose of our company.
Q5: Do you accept third-party inspection?
A5: Yes, we accept.
Q6: What is your after-sales service?
A6: We provide after-sales service, and each customer will have an exclusive manager to follow up.
